Name: Vandal Resistant Flush-Mount Access Control Keypad
Brand: Seco-Larm
SKU: SK-1123-FDQ
Rating: 5 (1 reviews)

Overview

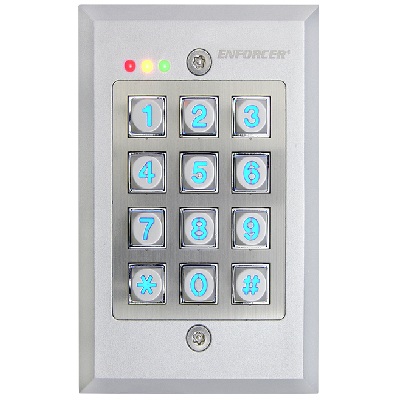

Vandal Resistant Flush-Mount Access Control Keypad

Flush-Mount Outdoor Illuminated Stand-Alone Keypad. Weather resistant and vandal resistant. 1100 Users, two outputs, 12~24 VDC/VAC operation. Includes duress, quick code, wrong-code lockout, smart egress input, visitor codes, three LEDs, built-in buzzer, and back box.

Features:

12~24 VAC/VDC auto-adjusting operation
Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
Output #1: Form C relay, 1A@30VDC max.
Output #2: Transistor ground, 100mA@24VDC
Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
Tamper output: N.C. Dry contact, 50mA@24VDC max
Mounts to a standard single-gang back box
IP66 Weatherproof rating
Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
All features are programmed directly from the keypad: No need for an external programmer
EEPROM Memory protects programmed information in case of power loss
Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2
Duress code signals a silent alarm if an authorized user is forced to open the door under duress
Egress input lets users exit the premises without keying in the code
Door sensor input for anti-tailgating operation
Interlocking input for connecting to a second keypad

Specifications

Product Name	Vandal Resistant Flush-Mount Access Control Keypad

Brand Name	Seco-Larm

Mfg #	SK-1123-FDQ

Cube	50 cu in

Length	3.15 in

Width	1.81 in

Height	4.72 in

Weight	1.01 lbs
