Name: Multi-Purpose Programmable Timer with Protective Case
Brand: Seco-Larm
SKU: SA-025Q
Rating: 5 (1 reviews)

Overview

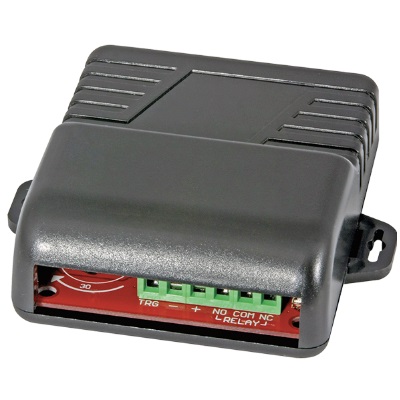

Multi-Purpose Programmable Timer with Protective Case

The ENFORCER® SA-025Q Multi-Purpose Programmable Timer with Protective Case is suitable for use with a wide range of timed security and access control products, such as electric door strikes, sirens, or bells. DIP switches for programming and auto-sensing of input voltage make installation easy. 1 second to 60 minutes. 12 or 24 VDC Auto switching. LED indicator. Form C relay, 8A@120VAC/24VDC.

Features:

Timer can be set from 1 second to 60 minutes
Protective case:
- Protects the product from the environment
- Prevents dust and dirt build up
- Makes product easier to mount
- Easy to hide and protect the terminals
Can be triggered by positive voltage (+DC), or closure or opening of dry contact
Relay can be programmed to activate at the start or at the end of the timing cycle
Relay can also be set to activate for one second at the end of the timing cycle
Programmable for pulse (flash) activation
Built-in reset function to manually reset timing cycle
Form C relay, contacts rated 8A@120VAC/24VDC
LED indicates relay is energized
Current: 1mA (standby), 50mA (active)
Board measures 2 7/8" x 2 1/2" (73x63 mm)
Functions programmed via DIP switches – no jumpers to cut

Specifications

Product Name	Multi-Purpose Programmable Timer with Protective Case

Brand Name	Seco-Larm

Mfg #	SA-025Q

Cube	20.13 cu in

Length	2.69 in

Width	3.25 in

Height	1.07 in

Weight	0.2 lbs

Operating Voltage	12 - 24 VDC
