Overview

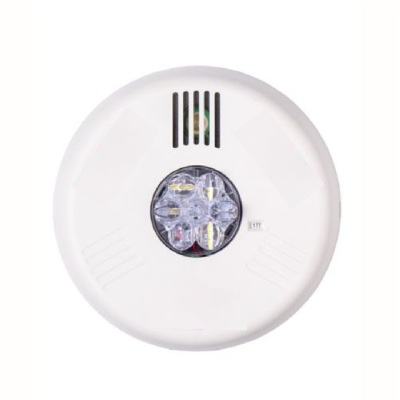

Eaton Eluxa Horn Strobe, LED, Ceiling, White, Amber Lens 24V, Indoor
Eluxa horn-strobe (led), white, ceiling, no lettering, amber lens, 24V, indoor
Features:
- Energy efficient
- LED technology provides industry’s lowest current draw
- Fewer power supplies required, smaller wire gage, reduced
wire runs
- Low-profile design
- One of the smallest, most compact single-gang designs
- Sleek, modern aesthetics with no visible mounting screws
- Special lettering available
- 6 Field selectable settings in 1 device
- Wall: 15, 30, 75, 110, 135, 185 cd
- Ceiling: 15, 30, 75, 110, 150, 177 cd
- 3 horn patterns
- Continuous, T3, and T3/T4; Fire and CO signaling in 1 device
- Sound pressure (Anechoic) dBA
- Low 78, High 91 (for Continuous, T3, and T4)
- Easy-to-install
- Mounting plate included with all models: Convenient capture
hinge allows installers to easily hold the device while fastening
the single-mount screw in place.
- Pre-wire/pre-test capability to check for wiring and ground
faults prior to appliance installation
- Finger slide switches--No tools needed for setting changes
- IN/OUT screw terminals using #12 to #18 AWG wires
- Mounting options include ELSBB, any single-gang backbox and
to 4” square with adapter kit for wall models and LSPKBB-C
backboxes, 4” square, 1 1/2” or 2 1/8”deep and 4” Octagonal, 1
½” or 2 1/8”deep for ceiling models
- Strobe synchronization
- Meet synchronizing standards with Wheelock’s DSM Sync
Modules, PS Power Supplies or SAFEPATH products
- Ability to mix xenon and LED strobes in the same field of view
- Compliance
- NFPA 72 2016 - 20 ms flash duration requirements
- UL 1971, UL 1638, UL 464, ULC-S525, ULC-S526
- California State Fire Marshal (CSFM)
- RoHS
- FCC Part 15, ICES
